Special Tools

Special tools and workshop equipment required

• Piston Resetting Tool :T10145

  Courtesy of AUDI OF AMERICA, LLC

• Sealing Tool :T10249

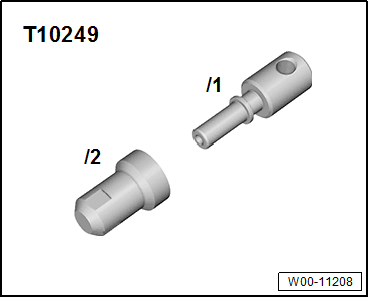

  Fig 1: Identifying Sealing Tool

  Courtesy of AUDI OF AMERICA, LLC
• Thrust Piece :T40325  for the protective cap -1-.

  Courtesy of AUDI OF AMERICA, LLC

• Hose Clip Pliers :VAG1275A

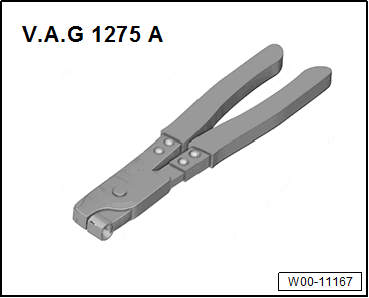

  Fig 2: Identifying Hose Clip Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Brake Pressure Gauge :VAG1310A

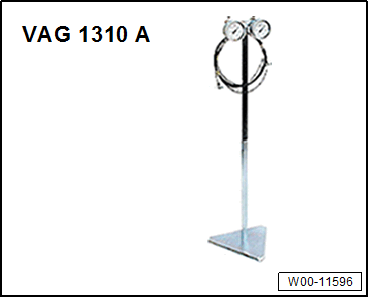

  Fig 3: Identifying Brake Pressure Gauge

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 5-50Nm :VAG1331
  Fig 4: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Brake Pedal Actuator :VAG1869/2  .
  Fig 5: Identifying Brake Pedal Actuator

  Courtesy of AUDI OF AMERICA, LLC
• Removal Tool :VAS40338
• Brake Charger/Bleeder Unit :VAS5234  with Brake Bleeder Adapter :VAS5234/1
  Fig 6: Identifying Brake Charger/Bleeder Unit

  Courtesy of AUDI OF AMERICA, LLC
• Wrench - Brake Bleeder Set :VAS5519

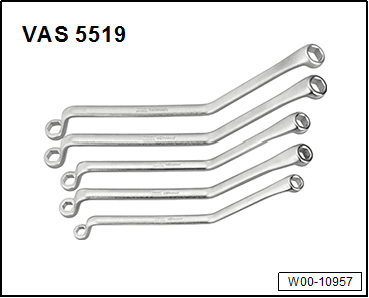

  Fig 7: Identifying Brake Bleeder Socket VAS 5519

  Courtesy of AUDI OF AMERICA, LLC
• Hand Vacuum Pump :VAS6213
  Fig 8: Hand Vacuum Pump VAS 6213

  Courtesy of AUDI OF AMERICA, LLC
• Brake Bleeding Tool Set :VAS6564

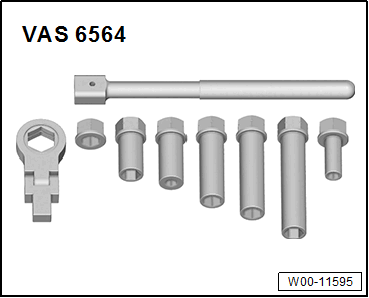

  Fig 9: Identifying Tool Set : VAS6564 For Brake Bleeding

  Courtesy of AUDI OF AMERICA, LLC

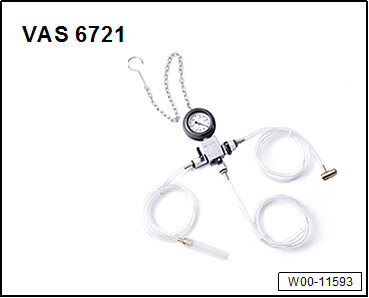

• Brake Servo Tester :VAS6721

  Courtesy of AUDI OF AMERICA, LLC

• Trim Removal Wedge :3409
  Fig 10: Identifying Trim Removal Wedge

  Courtesy of AUDI OF AMERICA, LLC
• Container -1-

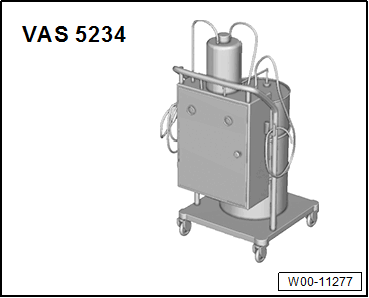

  Fig 11: Brake Charger/Bleeder Unit VAS5234

  Courtesy of AUDI OF AMERICA, LLC
• M10 plug -1- or M12 -2- from the Assembly Part Set :5Q0 698 311
  Fig 12: Plug 5 Q 0 698 311

  Courtesy of AUDI OF AMERICA, LLC
