Drive Axle Heat Shield, Removing And Installing
>>
Left Drive Axle Heat Shield
Left Drive Axle Heat Shield

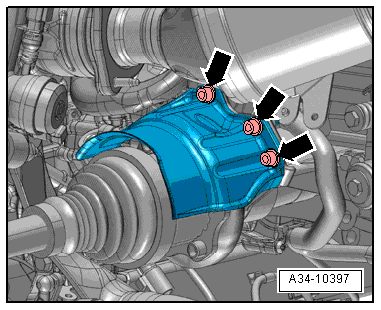

Fig 1: Identifying Bolts & Left Drive Axle Heat Shield
Courtesy of AUDI OF AMERICA, LLC
Component
Tightening Specification
Bolts -arrows-
23 Nm
Courtesy of AUDI OF AMERICA, LLC
