Special Tools

Special Tools And Workshop Equipment Required

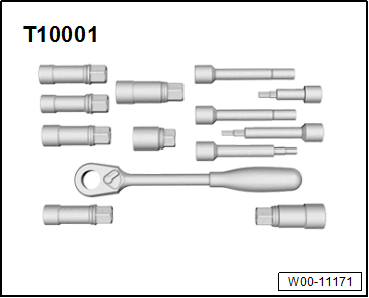

• Shock Absorber Set:T10001

  Courtesy of AUDI OF AMERICA, LLC

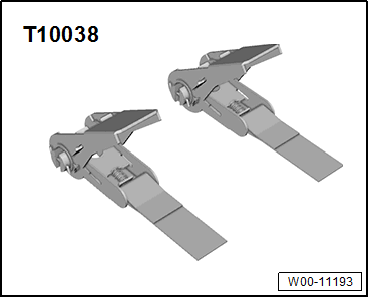

• Tensioning Strap:T10038
  Fig 1: Identifying Tensioning Strap T10038

  Courtesy of AUDI OF AMERICA, LLC

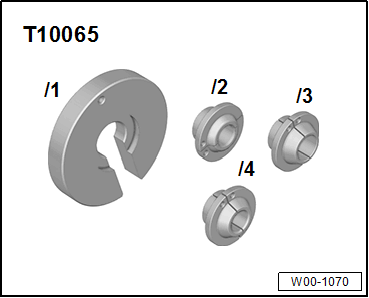

• Tripod Joint Tool:T10065
  Fig 2: Assembly Tool T10065

  Courtesy of AUDI OF AMERICA, LLC

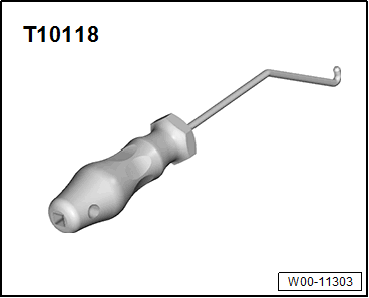

• Elbow Assembly Tool:T10118
  Fig 3: Elbow Assembly Tool T10118

  Courtesy of AUDI OF AMERICA, LLC

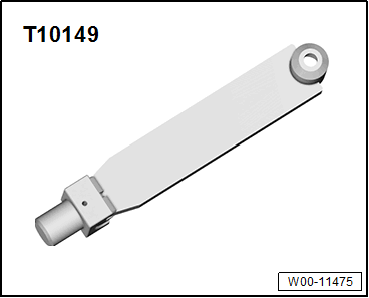

• Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

  Courtesy of AUDI OF AMERICA, LLC

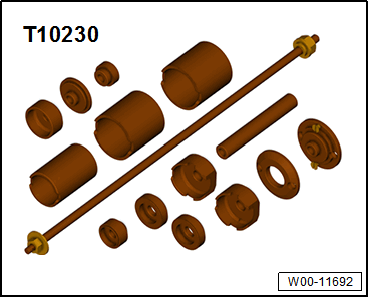

• Hydraulic Press - Bushing Assembly Tool Kit:T10230

  Courtesy of AUDI OF AMERICA, LLC

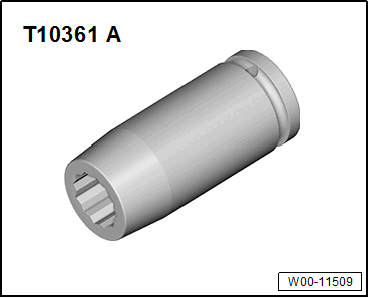

• Socket AF 24 mm:T10361A  for 12-point bolt
  Fig 4: Identifying Socket AF 24 mm T10361A

  Courtesy of AUDI OF AMERICA, LLC

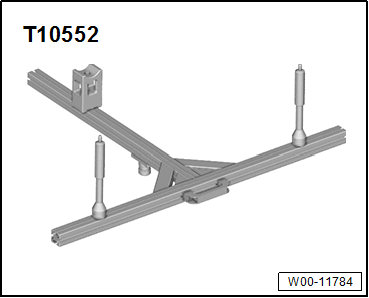

• Rear Axle Support:T10552

  Courtesy of AUDI OF AMERICA, LLC

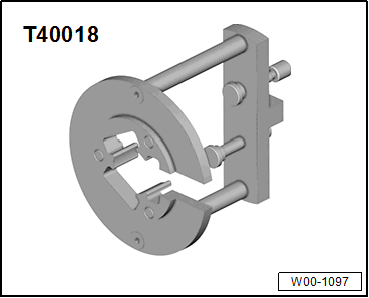

• Triple Roller Assembly Tool:T40018  for drive axles with triple roller joint AAR 3300 i
  Fig 5: Assembly Device T40018 For Triple Roller Joint AAR 3300 i

  Courtesy of AUDI OF AMERICA, LLC

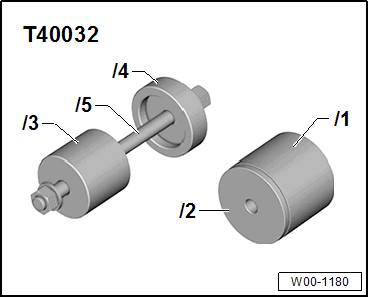

• Puller - Differential Bearing:T40032
  Fig 6: Assembly Tool T40032

  Courtesy of AUDI OF AMERICA, LLC

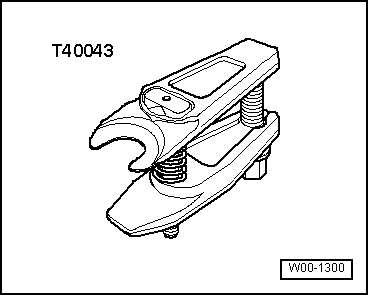

• Puller - Ball Joint:T40043
  Fig 7: Ball Joint Puller T40043

  Courtesy of AUDI OF AMERICA, LLC

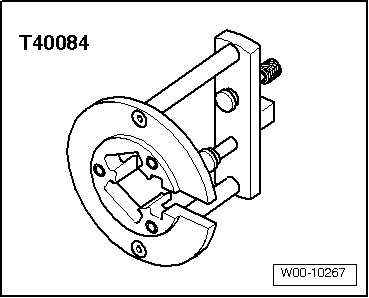

• Triple Roller Assembly Tool:T40084  for driveshafts with triple roller joint AAR 2600 i
  Fig 8: Assembly Device T40084 For Triple Roller Joint AAR 2600 i

  Courtesy of AUDI OF AMERICA, LLC

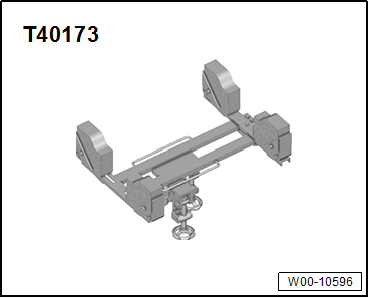

• Gearbox Support:T40173
  Fig 9: Gearbox Support T140173

  Courtesy of AUDI OF AMERICA, LLC

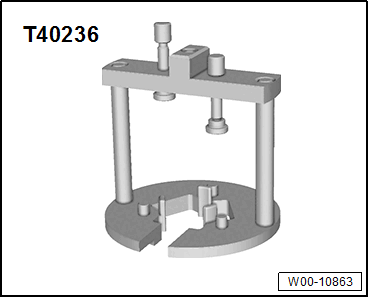

• Vibration Damper Assembly Tool:T40236
  Fig 10: Identifying Triple Roller Assembly Tool T40236

  Courtesy of AUDI OF AMERICA, LLC

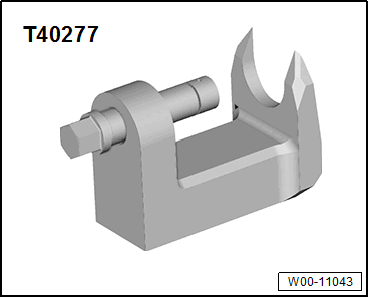

• Ball Joint Splitter :T40277

  Courtesy of AUDI OF AMERICA, LLC

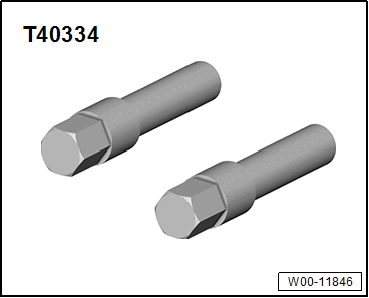

• Locating Pins:T40334

  Courtesy of AUDI OF AMERICA, LLC

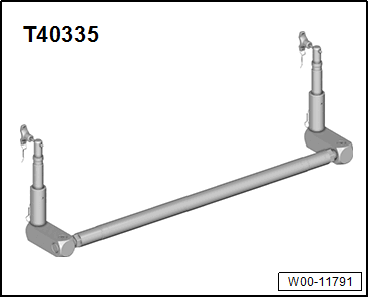

• Strut:T40335

  Courtesy of AUDI OF AMERICA, LLC

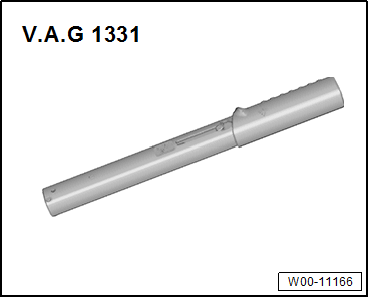

• Torque Wrench 1331 5-50 Nm:VAG1331
  Fig 11: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 40-200 Nm:VAG1332
  Fig 12: Identifying Torque Wrench 1332

  Courtesy of AUDI OF AMERICA, LLC

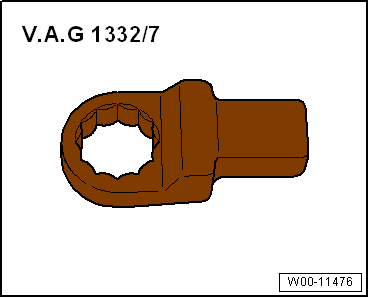

• Torque Wrench 1332 Insert - Ring Wrench - 21mm:VAG1332/7

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 80-400 Nm:VAG1576
  Fig 13: Identifying Torque Wrench V.A.G 1576

  Courtesy of AUDI OF AMERICA, LLC

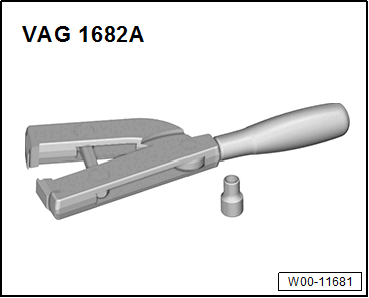

• Clamping Pliers:VAG1682A  with Clamping Pliers - Jaws:VAG1682A/1

  Courtesy of AUDI OF AMERICA, LLC

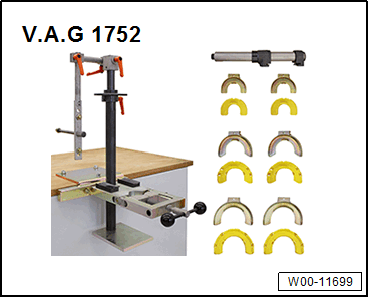

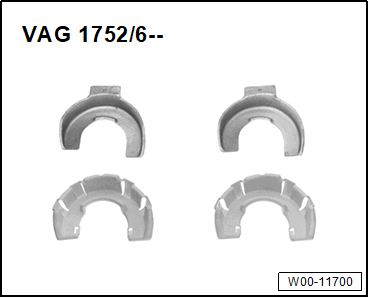

• Spring Compressor Kit:VAG1752

  Courtesy of AUDI OF AMERICA, LLC

• Spring Compressor Kit - Spring Retainer w/Inserts:VAG1752/6

  Courtesy of AUDI OF AMERICA, LLC

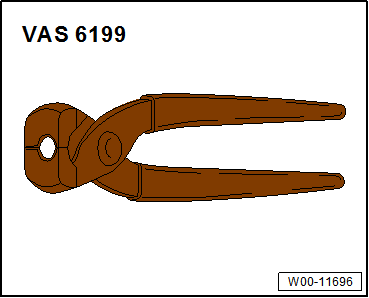

• Locking Pliers:VAS6199

  Courtesy of AUDI OF AMERICA, LLC

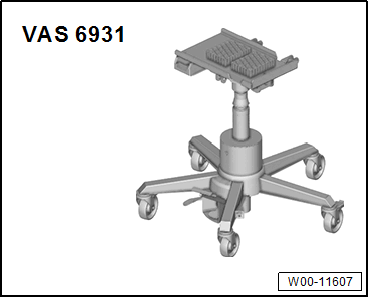

• Engine and Gearbox Jack:VAS6931
  Fig 14: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of AUDI OF AMERICA, LLC

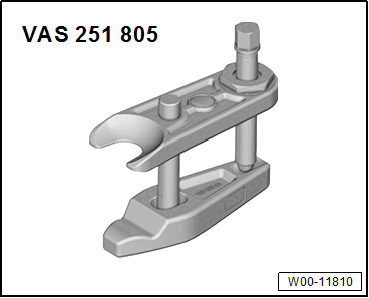

• Ball Joint Splitter :VAS251805

  Courtesy of AUDI OF AMERICA, LLC

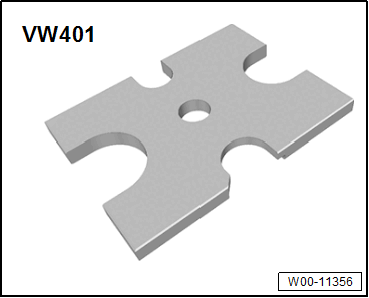

• Press Plate:VW401
  Fig 15: Press Plate

  Courtesy of AUDI OF AMERICA, LLC

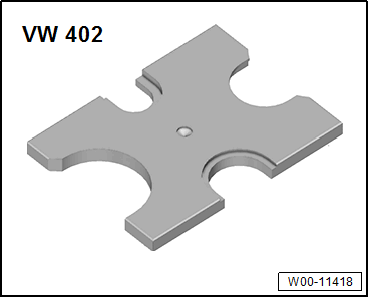

• Press Plate:VW402
  Fig 16: Press Plate VW402

  Courtesy of AUDI OF AMERICA, LLC

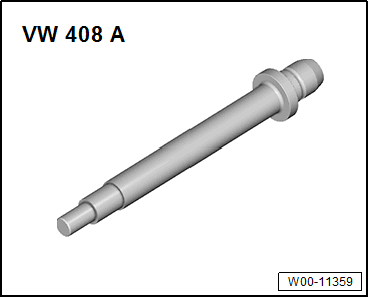

• Press Piece - Rod:VW408A

  Courtesy of AUDI OF AMERICA, LLC

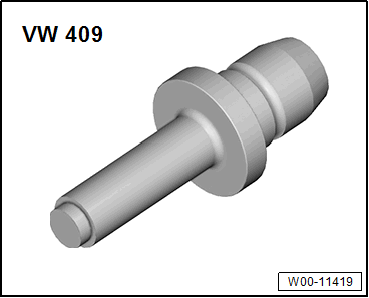

• Press Piece - Rod:VW409

  Courtesy of AUDI OF AMERICA, LLC

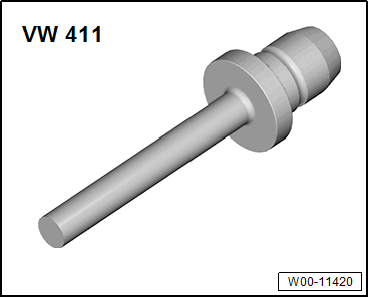

• Press Piece - Rod:VW411

  Courtesy of AUDI OF AMERICA, LLC

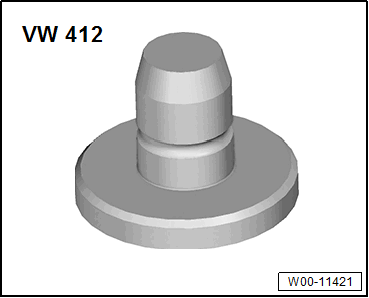

• Press Piece - Multiple Use:VW412
  Fig 17: Identifying Press Piece - Multiple Use VW412

  Courtesy of AUDI OF AMERICA, LLC

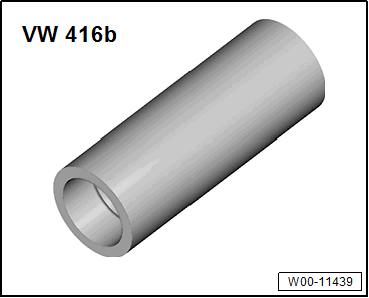

• Press Piece - 31.5mm:VW416B
  Fig 18: Press Piece - 37mm VW416 B

  Courtesy of AUDI OF AMERICA, LLC

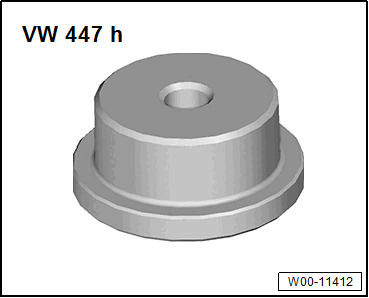

• Press Piece - Multiple Use:VW447H

  Courtesy of AUDI OF AMERICA, LLC

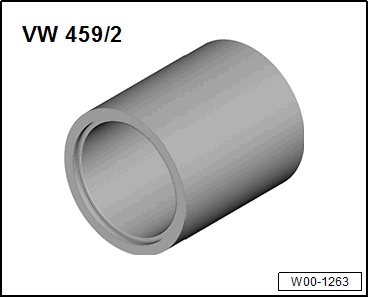

• Bearing Installer - Ball Joint/Bushing/Bearing 2:VW459/2

  Courtesy of AUDI OF AMERICA, LLC

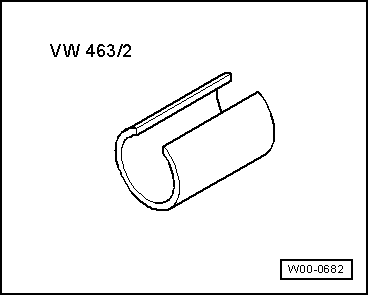

• Press Piece - Split Tube:VW463/2
  Fig 19: Identifying Press Piece VW 463/2

  Courtesy of AUDI OF AMERICA, LLC

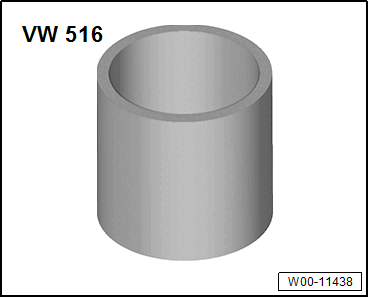

• Press Piece - 42mm:VW516
  Fig 20: Press Piece - 42 mm VW516

  Courtesy of AUDI OF AMERICA, LLC

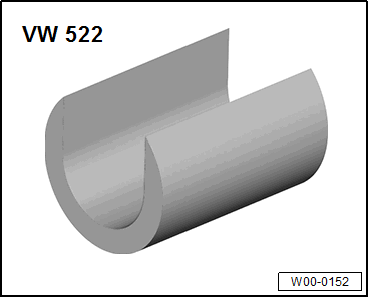

• CV Joint Press Sleeve:VW522
  Fig 21: CV Joint Press Sleeve VW522

  Courtesy of AUDI OF AMERICA, LLC

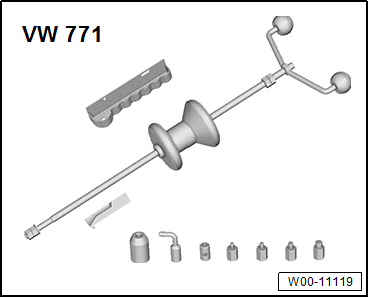

• Slide Hammer Set:VW771
  Fig 22: Identifying Slide Hammer Set

  Courtesy of AUDI OF AMERICA, LLC

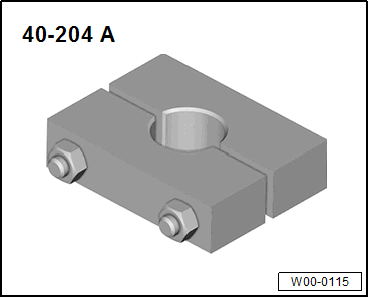

• Press Block :40-204A
  Fig 23: Identifying Press Block 40 - 204 A

  Courtesy of AUDI OF AMERICA, LLC

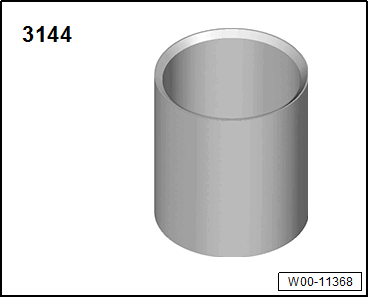

• Bearing Installer - Wheel Bearing:3144

  Courtesy of AUDI OF AMERICA, LLC

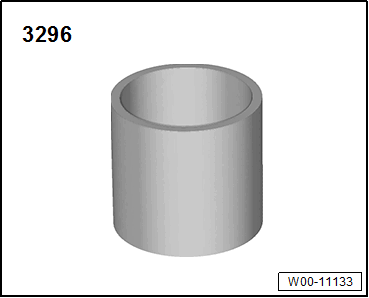

• Press Piece - Reverse Gear Syncro:3296
  Fig 24: Press Piece - Reverse Gear Syncro 3296

  Courtesy of AUDI OF AMERICA, LLC

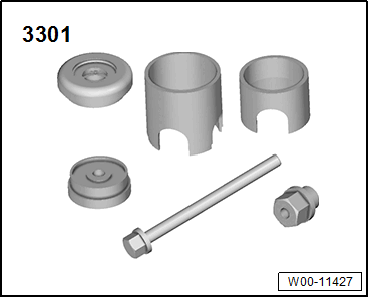

• Subframe Bushing Tool Kit:3301

  Courtesy of AUDI OF AMERICA, LLC

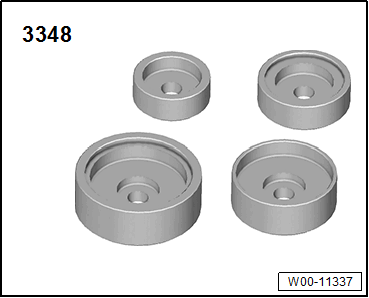

• Bearing Installer - Multiple Use:3348

  Courtesy of AUDI OF AMERICA, LLC

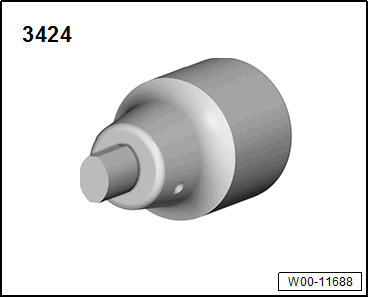

• Spreader Tool:3424

  Courtesy of AUDI OF AMERICA, LLC

• Not illustrated:
• Locating Pins:T40327
• Locating Pin:T40334
• Mount:T40386
• Torque Wrench 1331 Insert - Ring Wrench - 16mm:VAG1331/12
• Pneumatic Hydraulic Press:VAS6654
• 9 mm inner hex socket, commercially available
