Front Upper Transverse Link, Removing And Installing: Removing

-- Before starting the procedure, determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

-- FWD equipment version: Lower the subframe and do not remove the brake caliper and shock absorber while doing so. Refer to SUBFRAME, REMOVING AND INSTALLING .

-- AWD equipment version: Remove the subframe. Refer to SUBFRAME, REMOVING AND INSTALLING .

-- Disconnect the threaded connections -2, 4 and 5-.

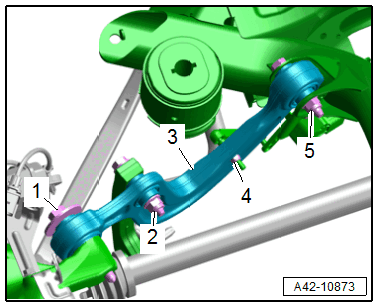

Fig 1: Upper Transverse Link

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the upper transverse link -3-.
