Front Upper Transverse Link, Removing And Installing: Installing

Install in reverse order of removal and note the following:

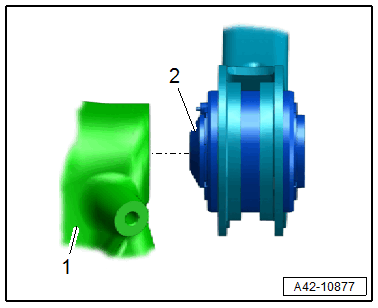

Installation position. Refer to Figure.

-- Install the threaded connections up to the stop but do not tighten yet.

-- Install the subframe. Refer to SUBFRAME, REMOVING AND INSTALLING .

NOTE:

Bonded rubber bushings have a limited range of rotation. Only tighten the threaded connections for the suspension when the vehicle is in curb weight position.

-- Lift the wheel bearing in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
Adjust the headlamps. Refer to HEADLAMP, ADJUSTING .
Driver assistance systems front camera, calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
