Drive Axle, Removing And Installing: Removing

-- Loosen the connection between the drive axle and wheel hub. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .

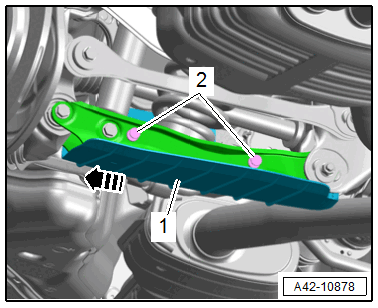

-- Remove the expanding rivets -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the wind deflector -1- slightly outward in the direction of the -arrow- and remove.

Left Side of the Vehicle

-- Remove the rear muffler. Refer to OVERVIEW - MUFFLER .

-- Heat shield version 1: remove the bolts -arrows-, and remove the heat shield -1-.

Fig 1: Heat Shield - Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Heat shield version 2: remove the bolts -arrows-, and remove the heat shield -A-.

Continuation for All Vehicles

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-, and carefully remove the drive axle.
