Installing both actuators

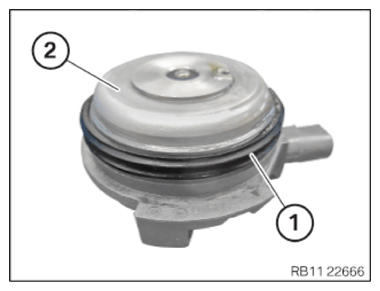

• Check the seal (1) for damage; if necessary, replace the actuator (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position both actuators.
• Connect and lock both connectors (1). The connectors (1) must engage audibly.
  NOTE: The figure shows the rear of the engine.

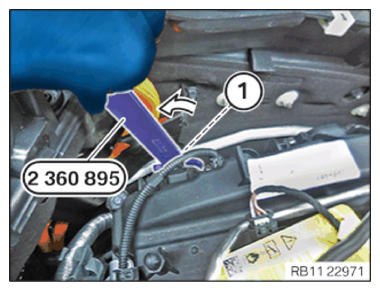

• Position special tool 2 360 895  correctly on the actuator (1) of the exhaust side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the actuator (1) of the exhaust side and turn in the arrow direction with the special tool 2 360 895  until the limit stops tap the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.

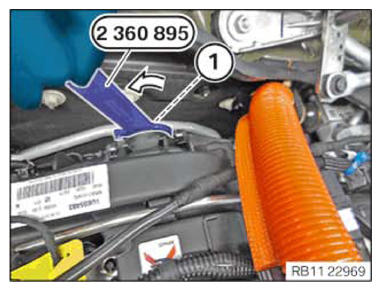

• Position special tool 2 360 895  correctly on the actuator (1) of the intake side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the actuator (1) of the intake side and turn in the arrow direction with the special tool 2 360 895  until the limit stops tap the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CENTER BULKHEAD LOWER PART .
• Refer to INSTALLING LEFT SEALING FRAME .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to FASTENING HIGH-VOLTAGE CABLES ON THE ELECTRICAL MACHINE ELECTRONICS .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
