Installing center bulkhead lower part
- Position the center cowl lower part (3).
- Tighten the nut (2) and the bolts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bulkhead lower part on body |
| Screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

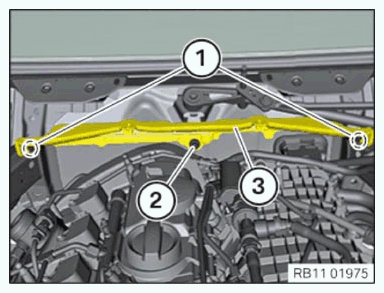

- Position the center cowl lower part (3).
- Tighten the nut (2) and the bolts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bulkhead lower part on body |
| Screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

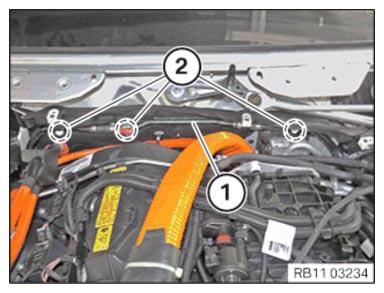

- Clip the vacuum line (1) onto the clips (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
