Installing fuel delivery line
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
- Feed the fuel supply line in and position it.
- Apply all screw connections only hand-tight .

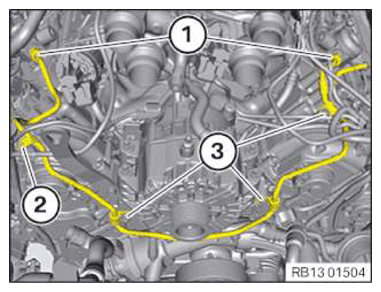

- First, tighten the nuts (1) of the fuel supply line on the high pressure pumps.TIGHTENING TORQUES SPECIFICATION
Fuel delivery line to high pressure pump M14 Joining torque 10 Nm Tightening torque 30 Nm - Next, tighten the bolt (2) on the right cylinder head cover.TIGHTENING TORQUES SPECIFICATION
Fuel supply line to cylinder head cover/cylinder head M6x16 Tightening torque 10 Nm - Next, tighten the bolts (3).
TIGHTENING TORQUES SPECIFICATION
| Fuel supply line to cylinder head cover/cylinder head | ||
| M6x16 | Tightening torque | 10 Nm |
Follow-up work
- Refer to CONNECTING THE POSITIVE BATTERY CABLE TO THE GAS GENERATOR .
- Refer to MOUNT THE WIRING HARNESS ON THE CYLINDER HEAD COVER ON THE LEFT
- Refer to PUTTING ON THE DRIVE BELT
- Refer to INSTALL THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALL RIGHT CLEAN AIR PIPE .
- Refer to INSTALL LEFT CLEAN AIR PIPE .
- Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
