Install the roller sunblind at the side window glass

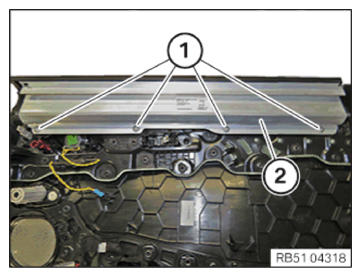

- Attach the roller sunblind (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Roller sunblind to door | ||
| Screw | Tightening torque | 2.3 Nm |

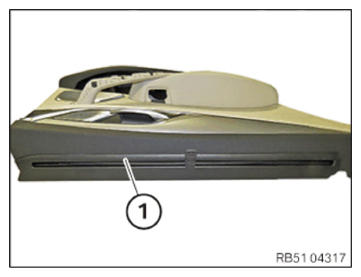

- Attach the cover (1) and guide the roller sunblind in.
- Engage the cover (1) at the roller sunblind.
Follow-up Work
- Install rear door TRIM PANEL .
- Attach the door handle COVER .
- Install the side window glass ROLLER SUNBLIND .
