Check/add front axle transmission oil
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... Raise the vehicle using a VEHICLE LIFT .
Preliminary work
- Remove the front left WHEEL .
- Remove the right steering assembly COVER .
- Remove the front UNDERBODY PROTECTION/FRONT THRUST FIELD .
- Remove the UNDERBODY PROTECTION of the steering gear and thrust field respectively.
- Remove the STIFFENING PLATE .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE. Damage to the front axle differential. Failure to comply with the oil specifications can result in serious damage to the front axle differential.
- Use only the approved front axle TRANSMISSION OIL.
NOTE:
TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 600 ml of oil.
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 600 ml of oil.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Place oil collecting apparatus underneath.

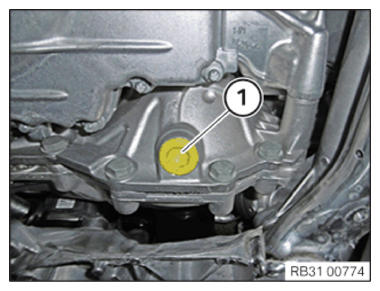

- Release the oil filler plug (1).
- Drain and dispose of front differential oil.
- Replace (1) screw plug.
Parts: Plug
- Tighten the oil filler plug (1).TIGHTENING TORQUES SPECIFICATION
Screw plug to front axle transmission M22

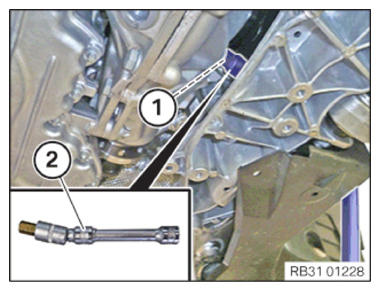

Replace screw plug with O-ring.Tightening torque 60 Nm - Release the oil filler plug (1) with the standard tool (2).

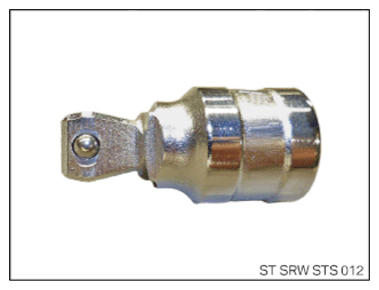

Standard tool: Pivoting extension 1/2 inch
Swivel extension 1/2 inch
Swivel extension 1/2 inch

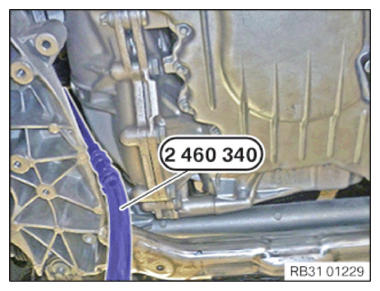

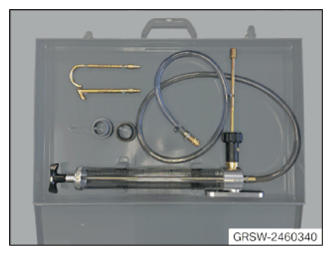

NOTE: TECHNICAL INFORMATION With the predefined filling capacity, it is imperative to take into account the filling capacity in the hose of the special tool. - Use the special tool 2 460 340
for filling up the front axle oil.
- Fill the front axle transmission oil with the special tool 2 460 340
into the front axle transmission.TECHNICAL DATA - FRONT AXLE TRANSMISSION OIL SPECIFICATION
Front axle transmission oil Front axle transmission filling capacity 600 mL - Replace (1) screw plug.
Parts: Plug
- Tighten the oil filler plug (1) with the standard tool (2).
Standard tool: Pivoting extension 1/2 inch
Swivel extension 1/2 inch
Swivel extension 1/2 inch
TIGHTENING TORQUES SPECIFICATION
| Screw plug to front axle transmission | ||
| M22 Replace screw plug with O-ring. |
Tightening torque | 60 Nm |
Follow-up work
- Install the THRUST FIELD .
- Install the UNDERBODY PROTECTION of the steering gear or the front thrust field.
- Install the front UNDERBODY PROTECTION or front thrust field.
- Install the left steering assembly COVER .
- Attach the front left WHEEL .
