Installing the rear compartment blower

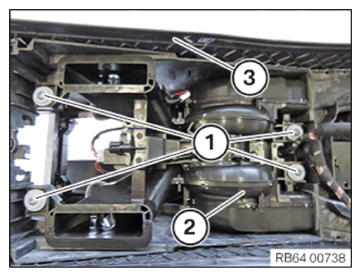

• Feed the rear compartment blower (2) into the center console (3).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Rear compartment blower to support
  Screw	Tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

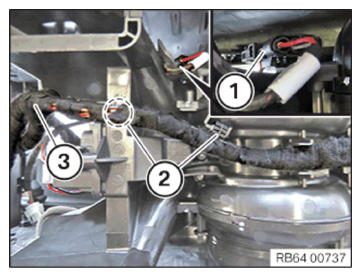

• Insert the wiring harness (3).
• Clip in the cable clip (2).
• Position and connect the connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

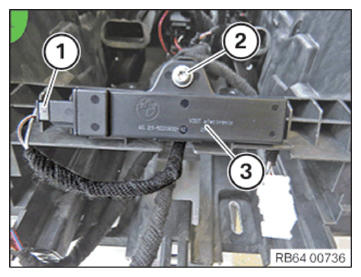

• Correctly position the interior aerial (3).
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Interior aerial
  Screw TS5x12	Tightening torque	1.5 Nm

• Position and connect the connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

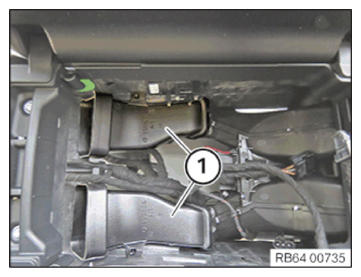

• Install both air ducts (1) correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the CENTER CONSOLE .
• Install the right footwell TRIM PANEL .
• Install the pedal mechanism TRIM PANEL .
• Install the CUP HOLDER .
• Install the center console TRIM .
• Install front storage compartment TRIM .
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
• Install the rear center console TRIM .
• Connect all battery EARTH LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
