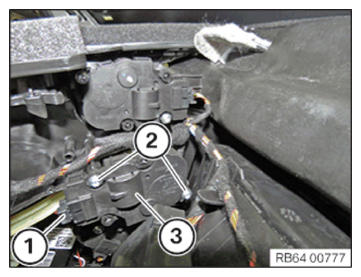

Remove compartment stratification flap motor, right
NOTE:
TECHNICAL INFORMATION
After the replacement, the controller drive must be reconfigured.
The address can only be configured with the diagnosis system.
After the replacement, the controller drive must be reconfigured.
The address can only be configured with the diagnosis system.
Preliminary works
- DEACTIVATE the 48 v electrical system.
- Disconnect all battery EARTH LEADS .
- Remove the rear passenger compartment air conditioning CONTROL PANEL (integrated automatic heating/air conditioning system with 4-zone control).
- Remove the rear VENTILATION GRILLE .
- Remove the rear VENTILATION GRILLE (air conditioning with 4-zone control).
- Remove the rear center console TRIM .
- Remove the center armrest STORAGE COMPARTMENT .
- Remove the center ARMREST .
- Remove the front storage compartment TRIM .
- Remove the center console TRIM .
- Remove CUPHOLDER .
- Remove the pedal mechanism TRIM PANEL .
- Remove the right footwell TRIM .
- Remove the CENTER CONSOLE .
- Remove the right instrument panel SIDE PANEL .
- Remove the right instrument panel FINISHER .
- Remove the radio operating unit and the air conditioning CONTROL PANEL .
- Remove HEAD UNIT HIGH (HU-H).
- Remove the instrument panel SPEAKER TRIM .
- Remove the instrument panel MID-RANGE SPEAKER .
- Remove both inner front door sill COVER STRIPS .
- Remove the left a-pillar footwell side TRIM PANEL .
- Remove the right-hand a-pillar footwell side TRIM PANEL .
- Remove the left and right a-pillar TRIM PANEL .
- Remove the left instrument panel SIDE PANEL .
- Remove the light OPERATING UNIT .
- Remove the left instrument panel FINISHER .
- Remove CENTRAL INFORMATION DISPLAY (CID).
- Remove the left fold-down COMPARTMENT .
- Remove the steering wheel/sports steering wheel AIRBAG UNIT .
- Remove the M sports steering wheel AIRBAG UNIT .
- Remove the STEERING WHEEL .
- Remove steering upper section column SHROUD .
- Remove steering lower section column SHROUD .
- Remove the steering column SWITCH CLUSTER (SZL).
- Remove the INSTRUMENT CLUSTER (KOMBI).
- Remove instrument PANEL TRIM .
