64 11 Heating And Air-Conditioning Unit With Actuation
>>
64 11 991 Removing and installing/replacing sensor for automatic air recirculation control (after vehicle diagnosis) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the automatic air recirculation control sensor
Removing the automatic air recirculation control sensor
Preliminary works
Remove the rear left engine compartment
COVER
Remove the rear right engine compartment
COVER
.
Remove cowl panel
COVER
.

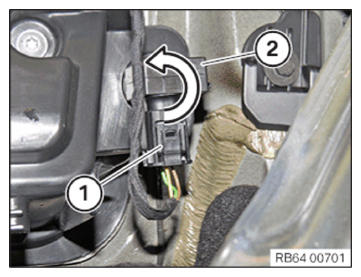

Unlock and disconnect connector (1).
Twist the automatic air recirculation control sensor (2) in the direction of the arrow and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
