Installing the electric auxiliary heater

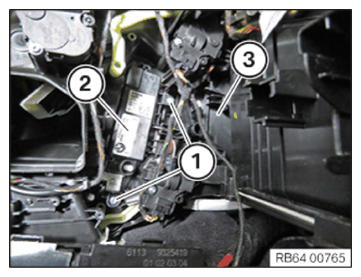

• Position electric auxiliary heater (2)  correctly and insert in the heating and air-conditioning unit (3)  .
• Tighten the screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

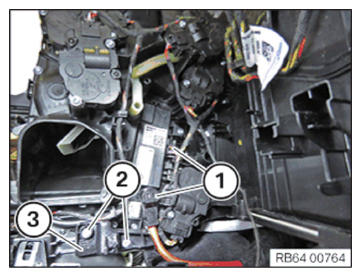

• Connect connectors (1)  and lock.
• Position the holder (3)  correctly and tighten the screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

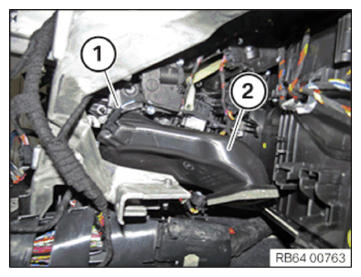

• Position the air duct (2)  correctly and engage the heating and air-conditioning unit.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

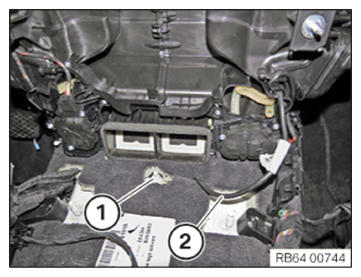

• Correctly position the ground cable (2)  and tighten the nut (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install instrument panel TRIM .
• Install the INSTRUMENT CLUSTER (KOMBI).
• Install the steering column SWITCH CLUSTER (SZL).
• Install steering lower section column SHROUD .
• Fit steering upper section column SHROUD .
• Install the STEERING WHEEL .
• Install the steering wheel or sports steering wheel AIRBAG UNIT .
• Install the M sports steering wheel AIRBAG UNIT .
• Install the left fold-down COMPARTMENT .
• Install the CENTRAL INFORMATION DISPLAY (CID).
• Install the left instrument panel FINISHER .
• Install the light OPERATING UNIT .
• Install the left instrument panel SIDE PANEL .
• Install the left and right a-pillar trim PANEL .
• Install right a-pillar footwell side TRIM PANEL .
• Install the left a-pillar footwell side TRIM PANEL .
• Install both inner front door sill COVER STRIPS .
• Install the instrument panel MID-RANGE SPEAKERS .
• Install the instrument panel SPEAKER TRIM .
• Install the HEAD UNIT HIGH (HU-H).
• Install radio operating unit and air conditioning CONTROL PANEL .
• Install the right instrument panel FINISHER .
• Install the right instrument panel SIDE PANEL .
• Install the CENTER CONSOLE .
• Install the right footwell TRIM PANEL .
• Install the pedal mechanism TRIM PANEL .
• Install the CUP HOLDER .
• Install the center console TRIM .
• Install front storage compartment TRIM .
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
• Install the rear center console TRIM .
• Install rear VENTILATION GRILLE .
• Install the rear VENTILATION GRILLE  (air conditioning with 4-zone control).
• Install the rear passenger compartment air conditioning CONTROL PANEL  (integrated automatic heating/air conditioning system with 4-zone control).
• Connect all battery EARTH LEADS .
• ACTIVATE the 48 v electrical system.
