Install air conditioning condenser

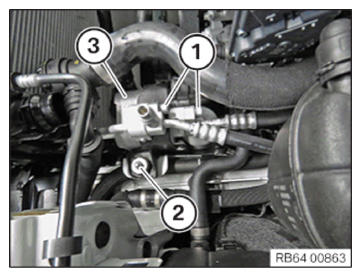

- Guide the air conditioning condenser (3) downwards and position it correctly.
- Position the refrigerant lines correctly and tighten the screws (1).
TIGHTENING TORQUES
| Refrigerant line to air conditioning condenser/connecting piece | ||
| M8 | Tightening torque | 19 Nm |
- Tighten nut (2).
TIGHTENING TORQUES
| Air conditioning condenser bracket on body | ||
| Nut M6 | Tightening torque | 8 Nm |
| M6 screw | Tightening torque | 8 Nm |
Follow-up Work
- Connect the low-temperature coolant circuit COOLANT LINES .
- Fill the low-temperature COOLING SYSTEM with the vacuum filler device
- Check low-temperature COOLING SYSTEM for watertightness.
- Install the UNDERBODY PROTECTION of the steering gear or the front stiffening plate.
- Install front UNDERBODY PROTECTION and/or front stiffening plate.
- Install RESONATOR .
- Evacuate and fill AIR CONDITIONING .
