Installing the cover on the inside of the window frame at the rear

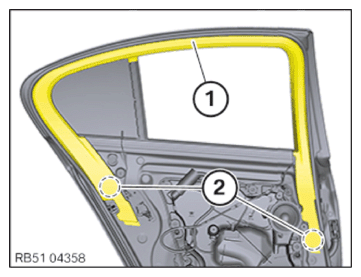

• Start from the rear and connect the cover (1) to the door frame.
• Clip in cover (1) into clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

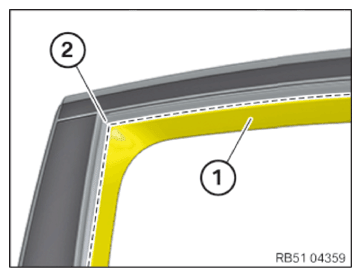

• Correctly feed in cover on window frame (1) into the gap of the rubber window seal (2).
• Make sure that the cover (1) is correctly fitted on the door seal.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install rear door TRIM PANEL .
• Attach the door handle COVER .
