Install rear fixed side window glass

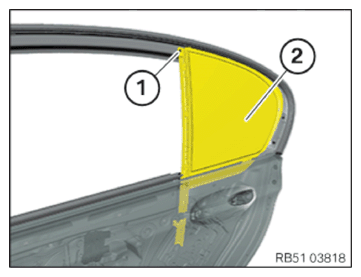

- Insert fixed side window glass (2) rotated by 90° to the front, into the door from the top.
- Clip the side window glass (2) into door at the top.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Side window, rear | ||
|---|---|---|
| Screw | Tightening torque | 2.5 Nm |

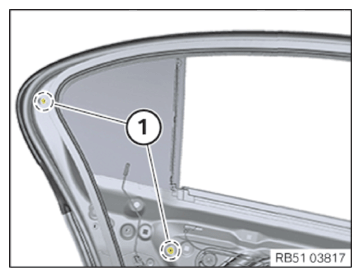

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Side window, rear | ||
|---|---|---|
| Screw | Tightening torque | 7.6 Nm |

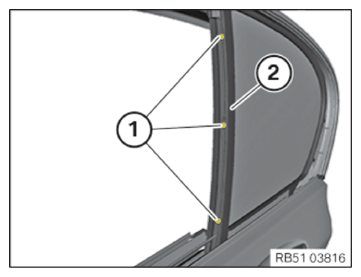

- Insert the window guide rail (2) in the door.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Window guide rail | ||
|---|---|---|
| Screw | Tightening torque | 2.3 Nm |

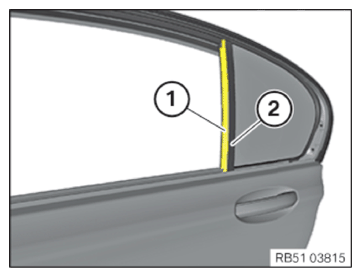

- Insert the rubber window seal (1) in the window guide rail (2).
Follow-up Work
- Partially install window frame COVER
- Install the inner rear door WEATHER STRIP .
- Install rear door TRIM PANEL .
- Attach the door handle COVER .
- Install the rear door WEATHER STRIP .
- Install the rear window FRAME TRIM .
