Disconnect the wiring harness of the rear active stabilizer

Preliminary work

• Remove the rear right WHEEL .
• Remove the camber control arm COVER .
• Remove EXHAUST SYSTEM
• Loosen the anti-roll bar, ANTI-ROLL BAR LINK .

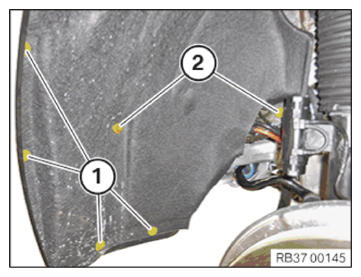

• Loosen the screws (1) and the nuts (2) of the rear right wheel arch trim panel at the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

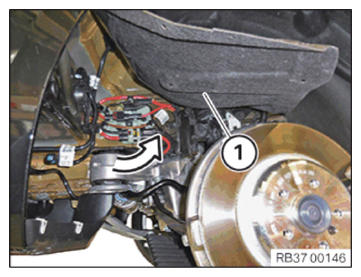

• Fold in the wheel arch trim panel (1) in the arrow direction towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

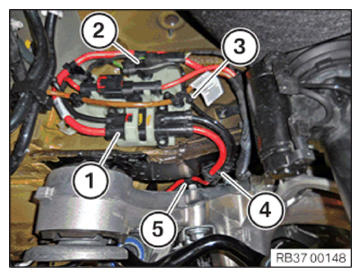

• Unlock and disconnect the connector (1) and remove it from the holder.
• Disconnect the connector (2) and detach the cable from the holder (3).
• Detach the wiring harness from the holders (4) and (5).
• Thread the wiring harness between the body and the rear axle support towards the anti-roll bar.

Courtesy of BMW OF NORTH AMERICA, INC.
