Install the oil pump in the automatic transmission (GA8HP75HZ)

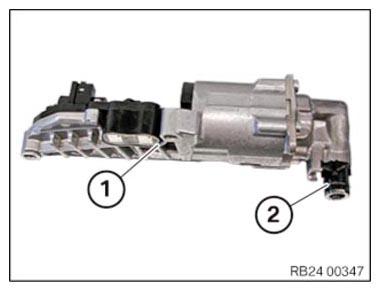

• Replace the sealing ring (2) when reinstalling the oil pump (1).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws.

  Parts:  screw

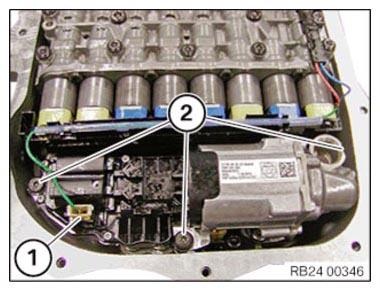

• Install oil pump.
• Insert screws (2) and tighten.
  TIGHTENING TORQUE SPECIFICATION



  Oil pump to transmission
  M6 Replace screws	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (1).

Follow-up work

• Install transmission OIL PAN (all-wheel drive vehicle) (GA8HP75HZ).
• Reconnect all battery GROUND LEADS .
• Check/top up the automatic transmission OIL LEVEL .
• Install rear UNDERBODY PROTECTION .
• Install the transmission side UNDERBODY PLANKING .
• Activate HIGH-VOLTAGE SYSTEM .
• Install flap in right luggage compartment TRIM PANEL .
