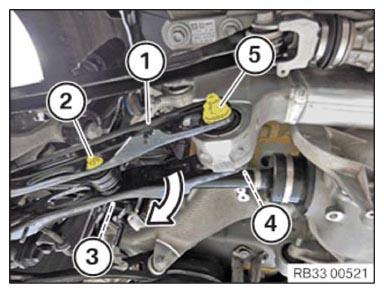

Partially removing the camber control arm
Partially removing the camber control arm
Loosen nut (3).
Remove the screw (2).
Loosen nut (5).
Remove the eccentric washer.
Remove the eccentric screw (4).
Swivel the camber control arm (1) towards the bottom.
