Removing the engine from the assembly jig

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

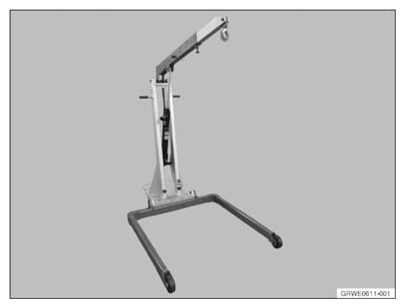

Stage the workshop crane 2 220 718 .

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the special tool (lifting equipment) 0 490 567 (11 0 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The workshop crane, lifting gear and the mounting brackets on the engine must all be connected to each other so that the engine hangs straight upon lifting.

Connect both hooks of the special tool 0 490 567 (11 0 020) to the front and rear of the engine with the mounting brackets.
Connect the workshop crane 2 220 718 to the special tool (lifting equipment) 0 490 567 (11 0 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

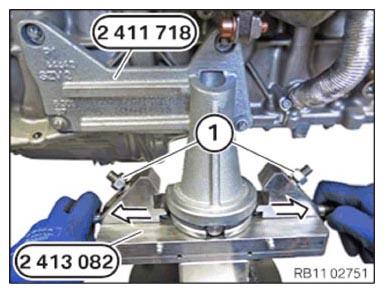

Slacken nuts (1).
Unclamp the clamp jaws of the special tool (motor mount) 2 413 082 in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

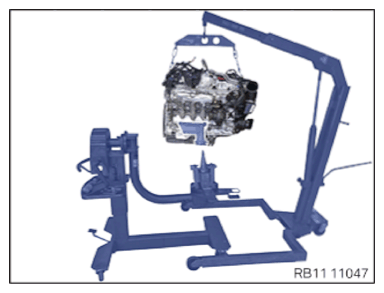

Raise the engine slowly.

Courtesy of BMW OF NORTH AMERICA, INC.

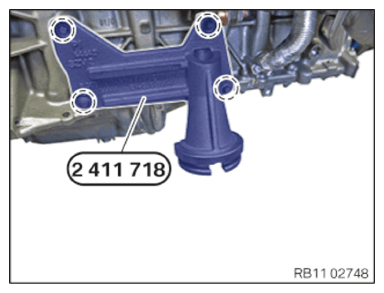

Unscrew the screws (marks) and remove the special tool 2 411 718 .

Courtesy of BMW OF NORTH AMERICA, INC.
