Removing the left and right front brake caliper
NOTE:
Description is for left component only. Procedure on the right side is identical.
Unclipping front brake hose
Removing the front brake caliper
- Loosen screws (1).
- Detach the brake caliper (2) in the direction of the arrow.
- Tie up the brake caliper (2).
(2) Do not hang the brake caliper from the brake hose.

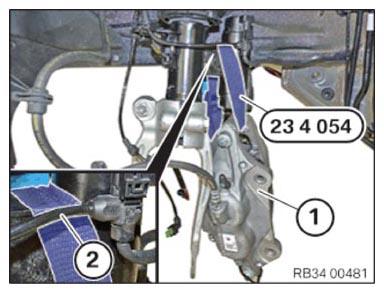

Strapping up the brake caliper
- Strap up the brake caliper (1) with the special tool (luggage belt) 0 495 550 (23 4 054) at the spring strut.
The line (2) must not be damaged.
