Detach transmission cross member
Detach transmission cross member
Support the transmission using special tools
0 495 498 (23 4 050)
and 2 219 012.
Secure the transmission with the luggage strap (1).
Courtesy of BMW OF NORTH AMERICA, INC.

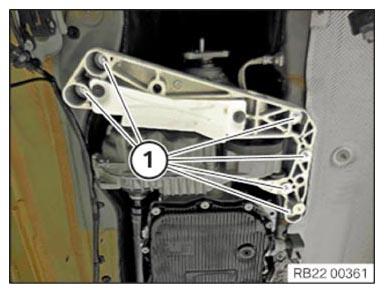

Loosen screws (1).
Lower the transmission cross member with the automatic transmission.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
