Disassembling the cylinder head from the special tool

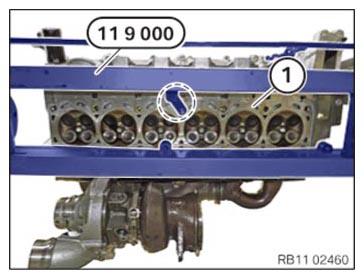

- Loosen the screw from the special tool 0 494 369 (11 9 004) in the highlighted area.
- Secure the cylinder head (1) on the special tool 0 494 362 (11 9 000)
against falling.

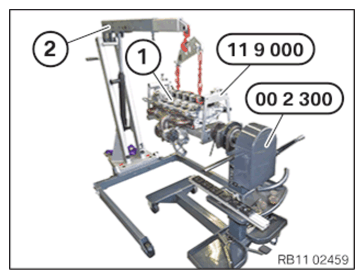

- Remove the cylinder head (1) and exhaust turbocharger using the workshop crane (2) and special tool 0 490 567 (11 0 020) from special tool 0 494 362 (11 9 000) .
- Disassemble special tool 0 494 362 (11 9 000) from special tool 0 495 187 (00 2 300) .
