Installing mobile lift table

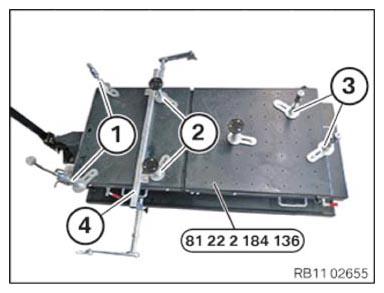

- Install mobile lift table with the accessories 2 305 379 .
- Position mounting (1) with mount 20 on the table plate A for front axle carrier at the coordinates 7/1 - 7/8.
- Position mounting (2) with mount 80 on the table plate A for front axle carrier at the coordinates 2/2 - 2/7.
- Position mounting (3) with mount 40 on the table plate B for transmission cross beam at the coordinates 2/3 - 3/7.
- Position mount 10 (4) on the table plate B for swivel bearing at the coordinates 3/1 - 3/8.
