Remove the special tool for the oil pressure check
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

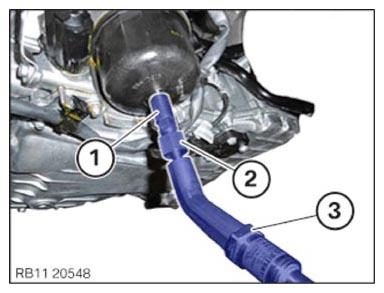

- Release the Integrated Measurement Interface Box (IMIB) 100 bar sensor (3) from the special tool 0 496 623 (11 4 310) (2) and remove it.
- Loosen and remove the special tool from the special tool 0 496 623 (11 4 310) (2) from the special tool 0 496 820 (11 7 430) (1).
- Loosen and remove the special tool from the special tool 0 496 820 (11 7 430)
(1) from the special tool 2 209 377 (11 7 470)
.

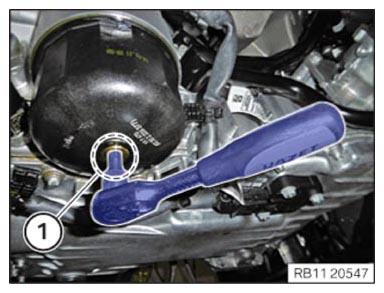

- Tighten oil drain plug (1).TIGHTENING TORQUES SPECIFICATION
Special tool 117470 Special tool Tightening torque

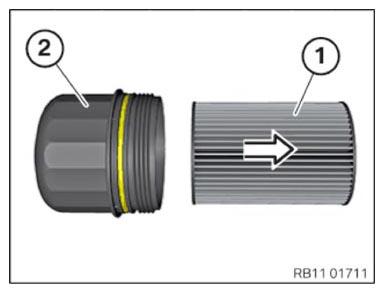

10 Nm - Pull the oil filter element (1) out of the special tool 2 209 377 (11 7 470)
(2) and dispose of it.
- Replace the oil filter and sealing ring.
Parts: Sealing ring, oil filter
- Coat the sealing ring with engine oil.

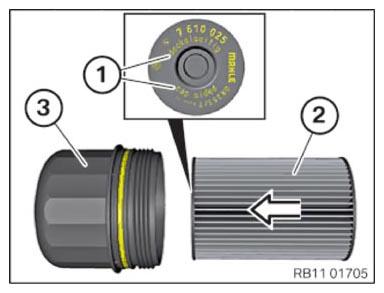

- Check identification (1) and fit in correct position.
- Push the oil filter element (2) into the oil filter cover (3).
The oil filter element (2) must engage audibly.
