Adjust the LED module for the light carpet

NOTE: Description is for left component only. Procedure on the right side is identical.

Adjust the LED module (1) by turning the adjustment screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

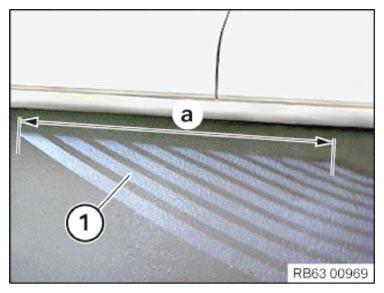

Adjust the light carpet (1) to the specified length dimension (a).

TECHNICAL DATA SPECIFICATION

Light carpet length
	Length (a)	130 cm

Courtesy of BMW OF NORTH AMERICA, INC.
