General Orphan Data (1 Of 3)
>>
Installing the heat shield at cylinders 5 to 8
Installing the heat shield at cylinders 5 to 8

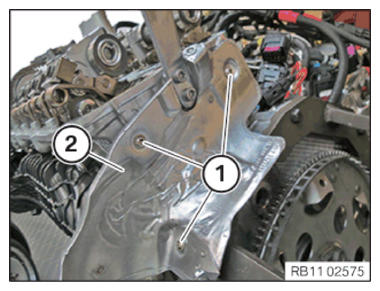

Insert the heat shield (2) at the cylinder head.
Secure screws (1).
TIGHTENING TORQUES SPECIFICATION
Heat protection plate
M6x16
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
