Installing the oil feed line for the exhaust turbocharger (engine encapsulation removed)

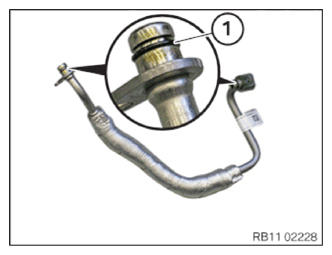

• Replace the O-rings (1).

  Parts:  O-rings

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in oil feed line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position oil feed line (2) on exhaust turbocharger.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line to exhaust turbocharger
M6x12	Replace O-ring.	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
