Removing both C-pillar trim panels
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove C-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

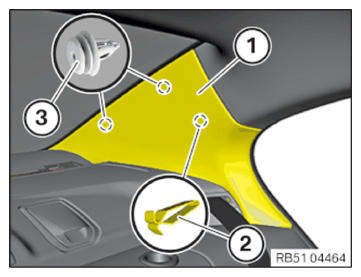

- Disengage the C-pillar trim panel (1) inward from the clamp (2) and the clips (3).
- Feed the C-pillar trim panel (1) out and upwards.
