Removing the guide sleeve for the rear head restraint

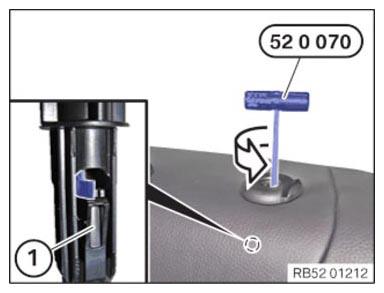

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: The description is for one component only. The procedure is identical for all further components.

• Push the detent (1) inward with the special tool 0 494 627 (52 0 070)  .
• Remove the guide sleeve towards the top.
