Removing both track end rods

Removing the tie rod end

NOTE: If necessary, counter-hold at the Torx socket.

Release the tie rod end (2) from the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

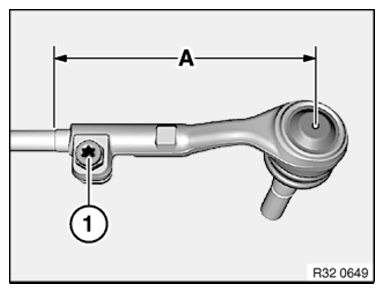

Determine dimension (A) to simplify the following toe adjustment on the front axle.
Slacken screw (1).
Unscrew tie rod end.

NOTE: If necessary, hold the track rod with an opened spanner for counter support.

Courtesy of BMW OF NORTH AMERICA, INC.
