Replacing cushion for front seat
Preliminary works
- Remove front SEAT .
- Remove front seat outer COVER .
- Remove seat adjustment OPERATING UNIT .
- Remove the front seat outer cover SUPPORT .
- Remove front seat inner COVER .
- Remove the front seat cushion seat COVER .
- Remove the front seat, seat COVER .
NOTE:
TECHNICAL INFORMATION
Only US/Canadian version of front passenger seat with seat occupancy mat (CIS):
The seat occupancy mat is bonded to the entire surface of the upholstery and can only be replaced together with the upholstery.
If the seat occupancy mat or upholstery is defective, both parts must always be replaced together.
Full operability can only be guaranteed with the Original BMW replacement part.
After the installation of the seat cover, the seat occupancy mat must be approved by the BMW programing system via the appropriate service function using an appropriate scan tool.
Only US/Canadian version of front passenger seat with seat occupancy mat (CIS):
The seat occupancy mat is bonded to the entire surface of the upholstery and can only be replaced together with the upholstery.
If the seat occupancy mat or upholstery is defective, both parts must always be replaced together.
Full operability can only be guaranteed with the Original BMW replacement part.
After the installation of the seat cover, the seat occupancy mat must be approved by the BMW programing system via the appropriate service function using an appropriate scan tool.
NOTE:
TECHNICAL INFORMATION
The heating mat is bonded to the foam pad and cannot be disassembled without damaging it.
When replacing, new heating mat must always be fitted with new foam pads.
The heating mat is bonded to the foam pad and cannot be disassembled without damaging it.
When replacing, new heating mat must always be fitted with new foam pads.
- Equipment specification with seat heating

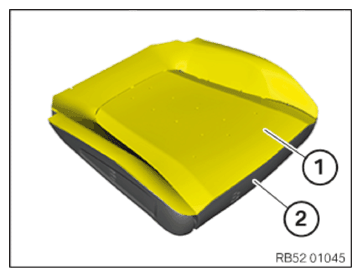

Position and align the heating mat (1) on the upholstery (2) .
Bond the heating mat (1) with the upholstery (2) .
Follow-up Work
