Installing the mechanism for the thigh support

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Installing the mechanism for lower thigh support with the drivetrain

Position the mechanism for lower thigh support with the drivetrain (3).
Connect connector (2).
Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position mechanism (1) for the thigh support on seat frame (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

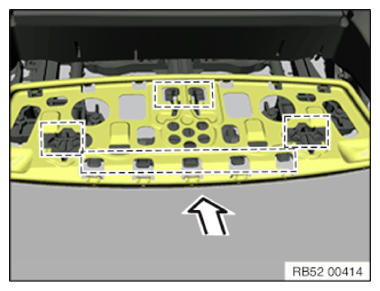

Position mechanism (2) for the lower thigh support in such a way that attachment points (3) can be inserted into seat frame (4) at the marked points.
Move mechanism (2) for the lower thigh support in the direction of the arrow until latch mechanisms (1) engage into seat frame (4).

Courtesy of BMW OF NORTH AMERICA, INC.

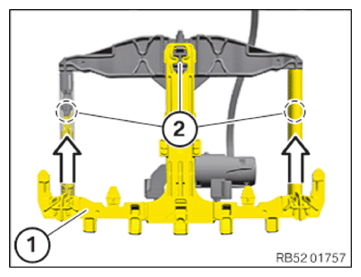

Guide in and install the mechanism for the upper thigh support (1) into the seat frame in the direction of the arrow.
Check if the latch mechanisms (2) fit correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Position handle (1) for the thigh support in the marked area and clip it into mechanism (2) for the thigh support.

Courtesy of BMW OF NORTH AMERICA, INC.
Position handle (1) for the thigh support as shown and clip it into the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.
Insert and lock the support for the thigh support correctly in the guides.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the seat cover (1) in the highlighted area.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the trim (1) from the bottom and clip in using the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work
