Removing power distribution for front positive battery cable
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional Information see: 61 00... SAFETY INSTRUCTIONS on handling hybrid cars
- For additional Information see: 61 25..NOTES on repair of high-voltage battery unit.
Preliminary work
- Disconnect all battery GROUND LEADS .
- Remove the rear right engine compartment COVER .
- Remove the rear left engine compartment COVER
- Remove left and right WIPER ARM .
- Remove the cowl COVER .
- Remove the right shock tower TENSION STRUT .

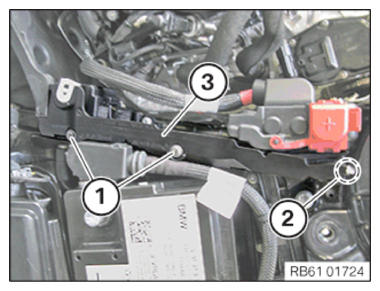

- Loosen screws (1).
- Loosen the detent (2).
- Feed sealing frame of power distribution (3) out upwards.
- Release cover (1) at detents (2).
- Remove the cover (1) in an upwards direction.
- Undo the nut (1) and feed out the corresponding cable.
- Undo the nuts (2) and feed out the corresponding cables.
- Release the cable clip (arrow).
- Loosen screws (1).
- Loosen screw (2).
- Feed out the power distribution box (3) in an upwards direction.
- Unlock and disconnect connector (1).
- Lever out the locks (1) at the connectors (2).
- Detach connectors (2).
