Installing radiator with the air conditioning condenser

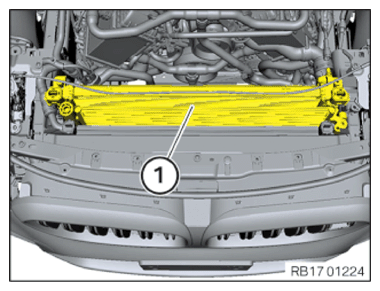

• Position radiator with the air conditioning condenser (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

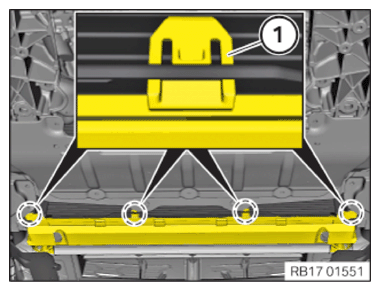

• Engage cover on the cooling module below on the retaining lugs (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

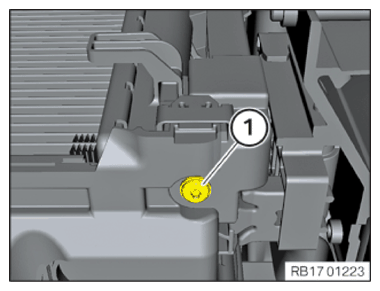

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Radiator on cooler module mount
  TS6x20	Tightening torque	5.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

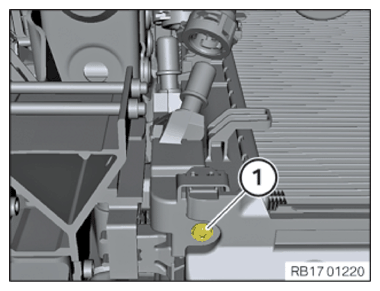

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Radiator on cooler module mount
  TS6x20	Tightening torque	5.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

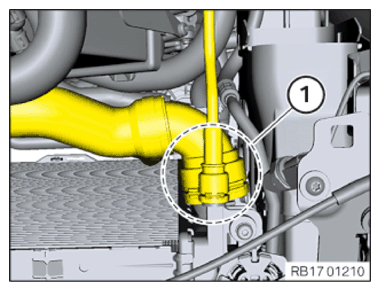

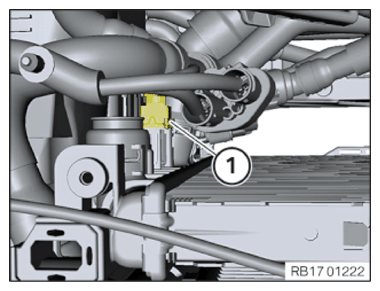

• Connect plug connection (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

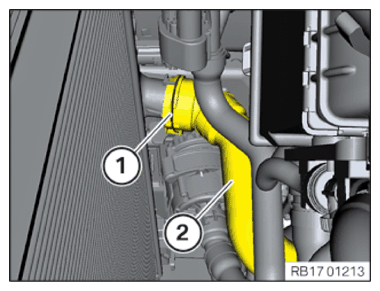

• Connect the coolant line (2).
• Retaining clip (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the coolant lines (2).
• The retaining clips on the coolant lines (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Fastening electric coolant pump of return line to holder
• Position electric coolant pump (2).
• Turn electric coolant pump (2) clockwise and engage at snap-in lug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALL THE REAR TOP CROSS CONNECTION .
• Refer to INSTALL FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
• Refer to FILL AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to EVACUATE AND CHARGE CONDITIONING .
