Putting the engine into the installation position
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
Preliminary work:
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
- Refer to REMOVING RESONATOR .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING REAR THRUST FIELD .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
- Guide in and position special tool 2 459 012 on cylinder head.
- Tighten the screws (1) of special tool 2 459 012TIGHTENING TORQUES SPECIFICATION
Special tool to cylinder head M8 Tightening torque
21.5 Nm - Carefully position engine bridge (1) with help from an auxiliary person.

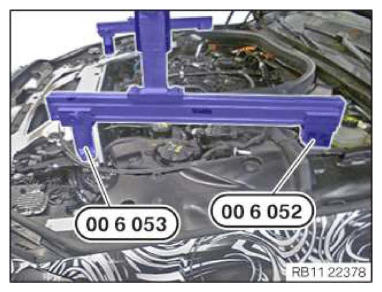

- Make sure that special tool 0 496 438 (00 6 053) on the left is correctly on the cross connection.
- Make sure that special tool 0 496 437 (00 6 052) on the left is correctly positioned on the spring strut dome.

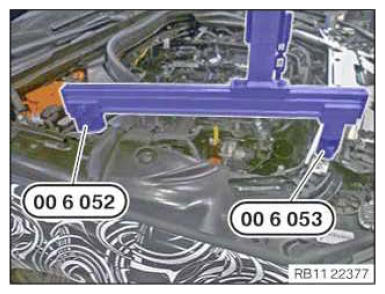

- Make sure that special tool 0 496 438 (00 6 053) on the right lies correctly on the cross connection.
- Make sure that special tool 0 496 437 (00 6 052) on the right is correctly positioned on the spring strut dome.
- Align the engine bridge by moving it on the profile strips of the special tool 0 496 430 (00 6 050) above the engine mounting bracket (1) and screw it down.
- Align the special tool 0 496 733 (00 6 080) above the engine mounting bracket (1).
- Connect the special tool 0496 733 (00 6 080) to the engine mounting bracket (1).
- Check whether the special tool 0 496 438 (00 6 053) on the right is correctly positioned on the cross connection.
- Check whether the special tool 0 495 437 (00 6 052) on the right lies correctly on the shock tower.
- Check whether the special tool 0 496 438 (00 6 053) on the left is correctly positioned on the cross connection.
- Check whether the special tool 0 496 437 (00 6 052) on the left is lying correctly on the shock tower.
- Keep all the standard tools ready.
Number Description 1 Standard torque wrench 2 Swivelling extension 3 External Torx E14 - Position suitable tool (1).
- Release screw (1) of the left engine mount with standard tool (2) sideways.
- Release screw (1) on the right engine mount from the top with a standard tool.
- Lift the engine by turning special tool 2 361 506 (00 6 103) 10 mm.
