Moving the engine to the installation position

NOTE: DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
61 00... SAFETY INFORMATION ON HANDLING HYBRID CARS .
For additional information see:
61 25... NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work:

Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING RESONATOR .
Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING THE COWL COVER .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING ALL IGNITION COILS .
Refer to REMOVING FUEL DELIVERY LINE .
Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE STIFFENING PLATE (THRUST FIELD) .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .

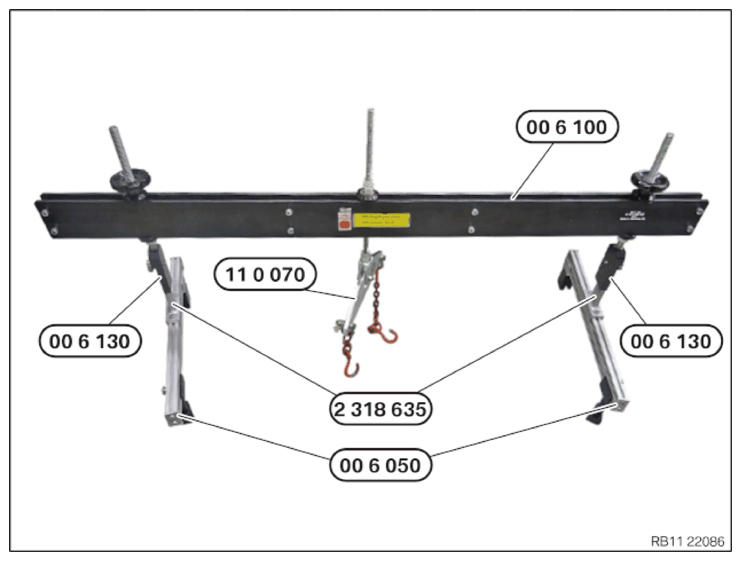

Prepared engine bridge

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Components connected to the engine joint or cross member.
Injury hazard!

Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
Attach the component to correctly mounted engine joints or cross members only.
Only lift the component, do not shift it forwards, backwards or in transverse direction.

Insert and position the special tool 2 459 012 at the cylinder head.
Tighten the screws (1) of the special tool 2 459 012 .

TIGHTENING TORQUES SPECIFICATION

Special tool to cylinder head
M8	Tightening torque 21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

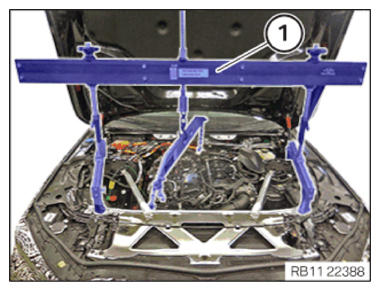

Carefully position engine bridge (1) with help from a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

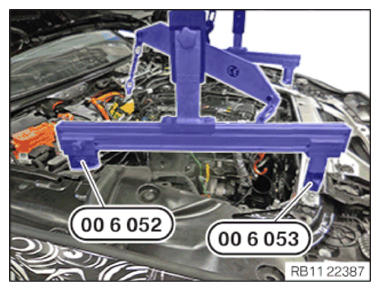

Make sure the left special tool 0 496 438 (00 6 053) is resting correctly on the cross connection.

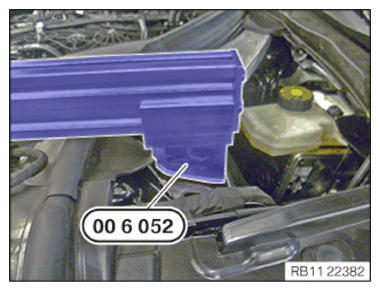

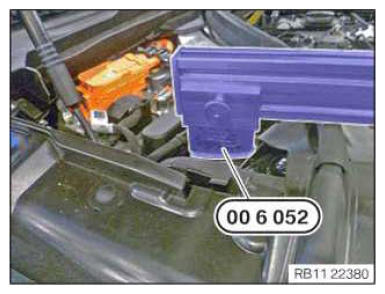

Make sure the left special tool 0 496 437 (00 6 052) is resting correctly on the shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

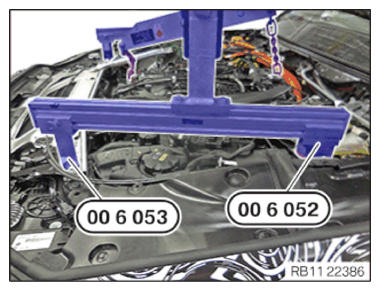

Make sure the special tool 0 496 438 (00 6 053) on the right is resting correctly on the cross connection.
Make sure the special tool 0 496 437 (00 6 052) on the right is resting correctly on the shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

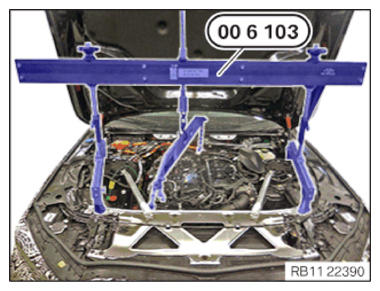

By shifting the engine bridge on the profile strips of the special tool 0 496 430 (00 6 050) , align it above the engine mounting bracket and screw in place.

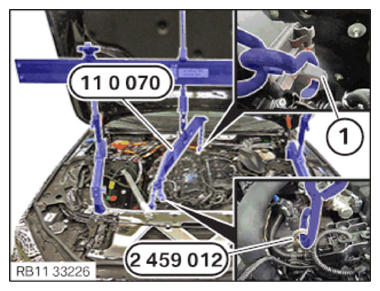

Connect the special tool 0 490 579 (11 0 070) to the special tool 2 459 012 .
Connect the special tool 0 490 579 (11 0 070) above the engine mounting bracket (1) at the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

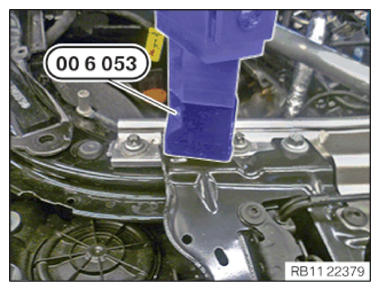

Check that the special tool 0 496 438 (00 6 053) on the right is resting correctly on the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 496 437 (00 6 052) on the right lies correctly on the shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

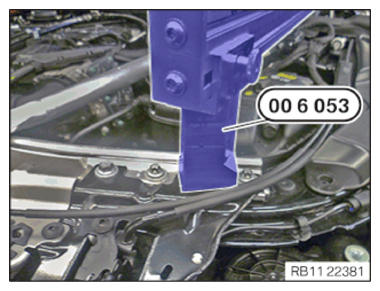

Check that the special tool 0 496 438 (00 6 053) on the left is resting correctly on the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 496 437 (00 6 052) on the left lies correctly on the shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

Keep all the standard tools ready.

Number	Description
1	Standard torque wrench
2	Swivel extension
3	External Torx socket E14

Courtesy of BMW OF NORTH AMERICA, INC.

Position suitable tools (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the left engine mount with a standard tool (2) at the side.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the right engine mount from the top with a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Raise the engine by turning the special tool 2 361 506 (00 6 103) (spindle) 10 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
