Installing coolant pump with support

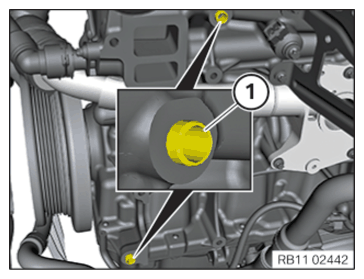

• Check the fitting sleeves (1) for damage, replace if necessary (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The sealing surfaces must be free of oil, grease and cleaning agents.

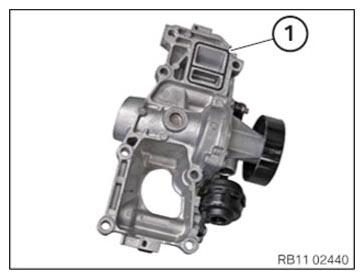

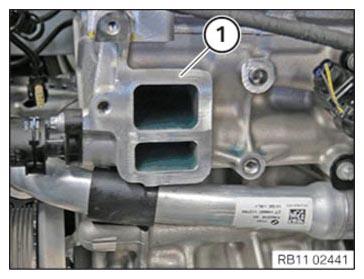

• Clean sealing surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket (1).

  Parts:  Gasket

• Replace O-ring on the heat management module.

  Parts:  O-ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant pump (2) with support on the fitting sleeves.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect vacuum hose (1) and attach to the clamp.
