Install heat management module

• Replace the profile seal (1) and the O-ring (2).

  Parts:  Profile seal and O-ring

• Make sure that the closure (3) is correctly installed and remount the closure (3) as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The sealing surfaces must be free of oil, grease and cleaning agents.
• Clean the sealing surfaces (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the heat management module (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws in the order (1) to (6).
  TIGHTENING TORQUES SPECIFICATION



  Heat exchange module to crankcase
  M6	tightening torque	8 Nm

  Fig 1: Heat Management Module Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  NOTE: TECHNICAL INFORMATION

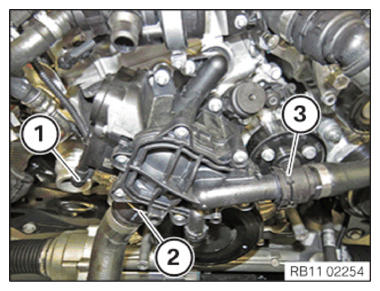

  Make sure that the connections are locked correctly. The locks must engage audibly.
• Lock and connect the coolant hoses (2) and (3).
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING THE COOLANT LINE OF HIGH-TEMPERATURE COOLANT CIRCUIT
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
