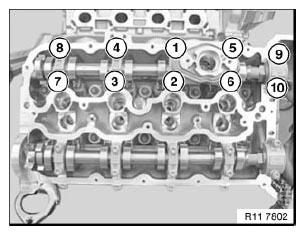

Securing the intake camshaft bearing caps on intake camshaft 1-4
- Oil and secure exhaust camshaft bearing caps A1 to A5.
- Secure the screws in the sequence 1 to 10 in steps of 180°.
TIGHTENING TORQUES SPECIFICATION
| Camshaft bearing cap to cylinder head |
| M6 |
Joining torque |
10 Nm |
Courtesy of BMW OF NORTH AMERICA, INC.
