Install exhaust camshaft

• Coat all bearing positions (1) with fresh motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean all bearing positions of the exhaust camshaft bearing caps (A1), (A2) and (A) and coat with engine oil.
• Clean the bearing positions (1) of the high pressure pump bracket and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean all the bearing positions (arrows) of the exhaust camshaft (1) and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the roller cam follower (1) is fitted correctly before installing the exhaust camshaft.
• Coat the roller cam follower (1) with fresh motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

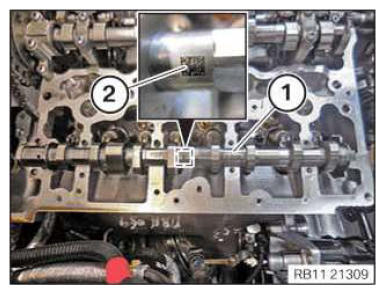

• Insert the exhaust camshaft (1) in the cylinder head, so that the mark (2) points upwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the fitting sealers (1) for correct sealing and damage and replace If necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The camshaft bearing caps must not be mixed up. The camshaft bearing caps must be installed in the installation position from which they were removed.
• Position all the exhaust camshaft bearing caps (A1) (A2) (A) and the high pressure pump bracket (1) on the cylinder head and press down.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The exhaust camshaft bearing caps are legibly labeled from the intake side and marked with A1, A2 and A.
  NOTE: Exhaust camshaft bearing cap A is a thrust bearing.
• Check the tensile strength of the screws for the bearing cap.

  The illustration shows the screw with a tensile strength of 8.8.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the tensile strength of the screws for the bearing cap.

  The illustration shows the screw with a tensile strength of 10.9.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The camshaft is under tension due to the valve springs. Tighten or loosen each screw on the camshaft bearing caps in the prescribed sequence only by half a turn. Repeat procedure.
• Join all the screws in the sequence (1) to (10) in half turns.
• Tightening torque to be observed.
• Tighten all screws in a sequence from (1) to (10).
  Fig 1: Exhaust Camshaft Bearing Caps Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  TIGHTENING TORQUES SPECIFICATION



  Exhaust camshaft to cylinder head
  M6 Tensile strength of screw 8.8	Joining torque	9.6 Nm
  	tightening torque	9.6 Nm
  M6 Tensile strength of screw 10.9	Joining torque	11.8 Nm
  	tightening torque	11.8 Nm

• Position and install the roller tappet (1).

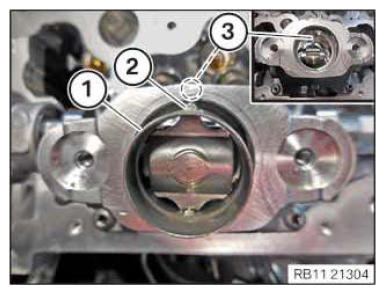

• Make sure the pin (2) is correctly positioned in the guide (3).
• Insert and instal the roller tappet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
