Removing the heating and air-conditioning unit

Prerequisite

Refrigerant has been drained

Preliminary works

Draw off the AIR CONDITIONING .
Deactivate the 48 v ELECTRICAL SYSTEM .
Disconnect all battery EARTH LEADS .
Remove the rear passenger compartment air conditioning CONTROL PANEL (integrated automatic heating/air conditioning system with 4-zone control).
Remove the rear ventilation GRILLE .
Remove the rear ventilation GRILLE (air conditioning with 4-zone control).
Remove the rear center CONSOLE TRIM .
Remove the center armrest STORAGE COMPARTMENT .
Remove the center ARMREST .
Remove the front storage compartment TRIM .
Remove the center CONSOLE TRIM .
Remove CUPHOLDER .
Remove the pedal mechanism TRIM PANEL .
Remove the right footwell TRIM .
Remove the center CONSOLE .
Remove the right instrument panel SIDE PANEL .
Remove the right instrument panel FINISHER .
Remove the radio operating unit and the air conditioning CONTROL PANEL .
Remove HEAD UNIT HIGH (HU-H).
Remove the instrument panel SPEAKER TRIM .
Remove the instrument panel MID-RANGE SPEAKER .
Remove both inner front door sill COVER STRIPS .
Remove the left a-pillar footwell side TRIM PANEL .
Remove the right-hand a-pillar footwell side TRIM PANEL .
Remove the left and right a-pillar TRIM PANEL .
Remove the left instrument panel SIDE PANEL .
Remove the light OPERATING UNIT .
Remove the left instrument panel FINISHER .
Remove CENTRAL INFORMATION DISPLAY (CID).
Remove the left fold-down COMPARTMENT .
Remove the steering wheel/sports steering wheel AIRBAG UNIT .
Remove the M sports steering wheel AIRBAG UNIT .
Remove the steering WHEEL .
Remove upper section steering COLUMN SHROUD .
Remove lower section steering COLUMN SHROUD .
Remove the steering column SWITCH CLUSTER (SZL).
Remove the INSTRUMENT CLUSTER (KOMBI).
Remove instrument PANEL TRIM .
Disconnect the expansion valve REFRIGERANT LINE .
Remove the instrument PANEL SUPPORT .

Use commercially available disconnection tools to pinch off the coolant lines.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.

Release the hose clamps (1) using special tool 0495 794 (17 2 050) and pull off the coolant hoses.

Courtesy of BMW OF NORTH AMERICA, INC.
Protect the carpet in footwell against leaking coolant.
Loosen screws (1), (2) and (3).
Loosen sealing flange (4) from the bulkhead (5) in the direction of the passenger compartment.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the latch mechanism (1) and remove the cable channel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the operations on the left and right side.
Unlock the latch mechanisms (1) and push the air duct (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the connector (1) on the blower (2).

Courtesy of BMW OF NORTH AMERICA, INC.
For equipment specifications with electric auxiliary heater: Release the nut (1) and remove the ground cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.

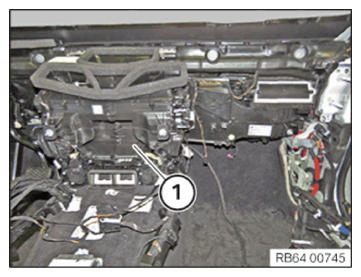

Feed out and remove the heating and air-conditioning unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.
