Install the left rear-cabin footwell-temperature sensor

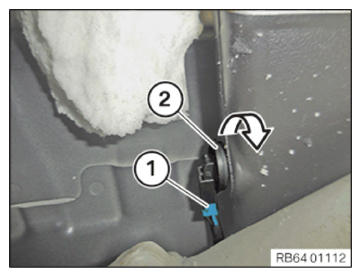

• Position the rear-cabin footwell-temperature sensor (2)  .
• Turn the rear-cabin footwell-temperature sensor (2)  clockwise by 90° and lock.
• Connect connector (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Fold back the left CARPET
• Install the center console TRIM .
• Install the right footwell TRIM PANEL .
• Install the pedal mechanism TRIM PANEL .
• Install the CUP HOLDER .
• Install front storage compartment TRIM .
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
• Install the rear center console TRIM .
• Install rear VENTILATION GRILLE .
• Install the rear VENTILATION GRILLE (air conditioning with 4-zone control).
• Install the rear passenger compartment air conditioning CONTROL PANEL (integrated automatic heating/air conditioning system with 4-zone control).
• Connect all battery EARTH LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
• Install the CENTER CONSOLE .
