Remove rear spring strut shock absorber
WARNING:
Pyrotechnic components.
Danger! Life-threatening injuries!
Danger! Life-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS on handling components with gas generators.
Preliminary work
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery EARTH LEADS .
- Remove rear left or right WHEEL .
- Remove rear wheel arch COVER .
- Remove the camber control arm COVER .
- Remove the storage shelf TRIM PANEL .
- Remove rear upper SEAT BELT .
- Set the SOUNDPROOFING mat aside.

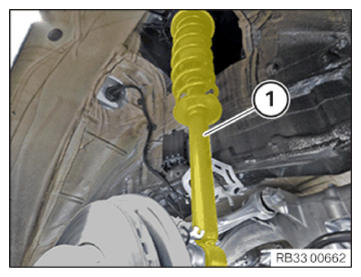

NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
