Removing The Engine Compartment Lid Hinge, Right

WARNING: Working on 12 V vehicle electrical system.
Risk of short circuits! Risk of fire!

Make sure that no charger is connected to the jump start support point in the engine compartment.
Detach battery earth lead from battery.
With auxiliary batteries: Detach all battery earth leads from additional batteries.

Preliminary work

Refer to DISCONNECTING ALL BATTERY EARTH LEADS .
Refer to REMOVING THE NOZZLE CHAIN .
refer to REMOVE BONNET .
Refer to REMOVING THE GAS PRESSURE SPRING FOR ENGINE COMPARTMENT LID .
Refer to REMOVE LEFT AND RIGHT WIPER ARM .
Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVE COWL PANEL COVER .
refer to REMOVING THE ACTUATOR FROM THE BONNET HINGE ON THE RIGHT

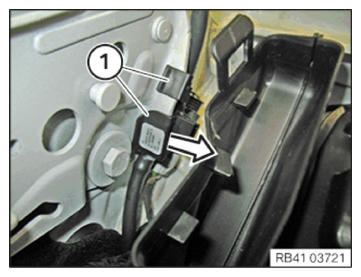

Unclip the cable clip (1) and pull it off towards the side.

Courtesy of BMW OF NORTH AMERICA, INC.

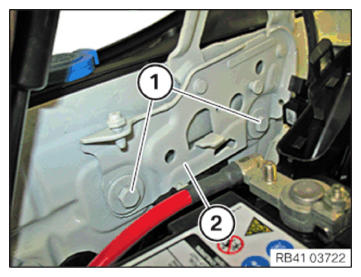

Loosen screws (1) .
Remove the engine compartment lid hinge (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
