Install the rear outside door handle support
- Attach the Bowden cable nipple (3).
- Attach the Bowden cable (2).
- Twist and engage the tab (1).
- Clip in wiring harness.
- Insert the outside door handle support.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Outside door handle support to door | ||
| Screw | Tightening torque | 2.6 Nm |

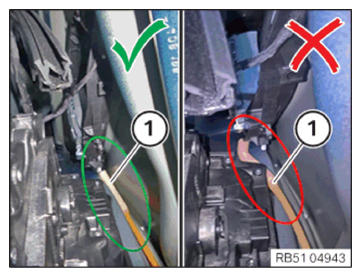

- Make sure the mounting orientation of the Bowden cable (1) is correct in the area of the mark.
- Install the cover (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Attachment bell to outside door handle support | ||
| Screw | Tightening torque | 3 Nm |
Follow-up Work
- Install rear door, DOOR LOCK .
- Install the rear door MODULE CARRIER .
- Install rear door TRIM PANEL .
- Attach the door handle COVER .
- Install the rear door WEATHER STRIP .
- Install the rear outer COVER .
