Remove the actuator on the left bonnet hinge
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary works
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery EARTH LEADS .
- Remove the rear left engine compartment COVER
- Remove left and right WIPER ARM .
- Remove cowl panel COVER .
WARNING:
Pyrotechnic components.
Danger! Life-threatening injuries!
Danger! Life-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS on handling components with gas generators.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

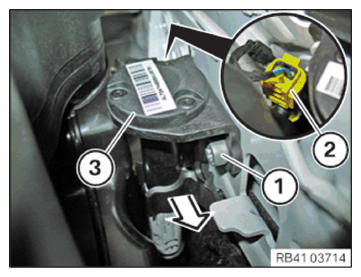

- Loosen screw (1).
- Unlock plug connection (2) and disconnect.
- Slightly pull the actuator (3) forwards in direction of arrow and remove it.
