Install the finisher on the rear door trim panel

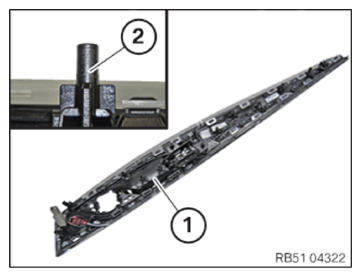

- Saw off all welding pins (1) on the finisher along the molding (2).
- Remove welding residue from the door trim panel using a scalpel.
- Installing finisher.
NOTE:
Welding pins must not protrude from the door trim panel.

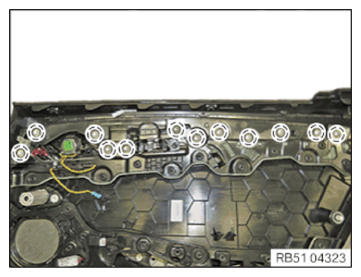

- Screw the repair screws into the decorative strip and tighten.
TIGHTENING TORQUES SPECIFICATION
| Repair screw to door trim panel | ||
|---|---|---|
| Oval-head screw TS4x10 ISA |
Tightening torque | 2.3 Nm |
Follow-up Work
- Install rear door TRIM PANEL .
- Attach the door handle COVER .
